Effluent Pumps

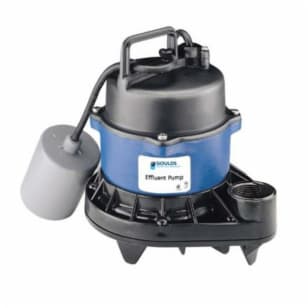

Goulds EP0411AC Submersible Effluent Pump, 60 gpm Max Flow, Up to 31 ft Max Head, 115 VAC, 1 ph
Part #
1213
MFG #
EP0411AC
Email
Print
Copy Link
Goulds EP0411AC Submersible Effluent Pump, 60 gpm Max Flow, Up to 31 ft Max Head, 115 VAC, 1 ph
Part #
1213
MFG #
EP0411AC
Sign In to See Your Price
Sign In to Build Cart
Add to List
Goulds EP0411AC Submersible Effluent Pump, 60 gpm Max Flow, Up to 31 ft Max Head, 115 VAC, 1 ph
Part #
1213
MFG #
EP0411AC
Item Features
Attributes
Documents
Item Features
EP04 thermoplastic semi-open design with pump out vanes for mechanical seal protection.
Casing and base are rugged thermoplastic design provides superior strength and corrosion resistance.
Motor housing - cast iron for efficient heat transfer, strength and durability.
Motor cover - thermoplastic cover with integral handle and float switch attachment points.
Power cable - severe duty rated, oil and water resistant.
Bearings - upper and lower heavy duty ball bearing construction.
Capable of running dry without damage to components.
Carbon-rotary/ceramic-stationary, Buna-N elastomers.
Class B insulation.
300 stainless steel fasteners.
3/4 in maximum solid handling.
Model number: 3871.
Attributes
Series
EP04
Maximum Flow Rate
60 gpm
Outlet Size
1-1/2 in NPT
Maximum Head
Up to 31 ft
Horsepower
0.4 hp
Voltage Rating
115 VAC
Amperage Rating
12 A
Frequency Rating
60 Hz
Phase
1 ph
Motor Speed
1550 rpm
Cord Type
SJTW 16/3 AWG 20 ft
Impeller Type
Thermoplastic Semi-Open
Temperature Rating
104 deg F Continuous/140 deg F Intermittent
Bearing Type
Heavy Duty Ball
Material
Cast iron
Dimensions
9-1/4 in L x 7-1/2 in W x 10-1/8 in H
Domestic/Import
Domestic
Documents
Instruction/Installation Manual
Line Drawing
Specification Sheet
