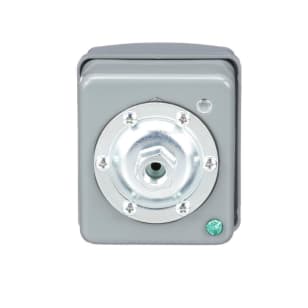

Square D 9013GHG2J25 Compressor Switch, 65 to 200 psi Pressure, 20 to 40 psi Differential, DPST Contact, Screw Clamp Connection

Part #4657

MFG #9013GHG2J25


Square D 9013GHG2J25 Compressor Switch, 65 to 200 psi Pressure, 20 to 40 psi Differential, DPST Contact, Screw Clamp Connection

Part #4657

MFG #9013GHG2J25

Sign In to See Your Price

Square D 9013GHG2J25 Compressor Switch, 65 to 200 psi Pressure, 20 to 40 psi Differential, DPST Contact, Screw Clamp Connection

Part #4657

MFG #9013GHG2J25

Item Features
  • Fresh water and air controller fluid.
  • Regulation between 2 threshold pressure switch operation.
  • Adjustable differential scale.
  • 1/4 in NPSF internal fluid connection.
  • +/-3% repeat accuracy.
  • 575 VAC insulation voltage.
  • Diaphragm pressure actuator.
  • 60 to 80 psi value of setting.
  • 4 terminal blocks.
  • 2 NC, snap action, DPST-DB, form YY contacts type and composition.
  • 3 knockouts for 1/2 in conduit cable entry.
  • 10 AWG clamping capacity.
  • 20 A by cartridge fuse, type gG short circuit protection.
  • 100000 cycles at 10 cycles/min electrical durability.
  • 300000 cycles mechanical durability.
  • Without local display.
