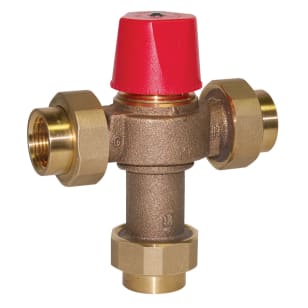

WATTS 0559104 LF1170 Temperature Control Valve, 3/4 in Nominal, FNPT End Style, 150 psi Pressure, 90 to 160 deg F, 0.5 to 23 gpm Flow Rate, Copper Silicon Alloy Body, Domestic
Part #3772
MFG #0559104
WATTS 0559104 LF1170 Temperature Control Valve, 3/4 in Nominal, FNPT End Style, 150 psi Pressure, 90 to 160 deg F, 0.5 to 23 gpm Flow Rate, Copper Silicon Alloy Body, Domestic
Part #3772
MFG #0559104
Sign In to See Your Price
WATTS 0559104 LF1170 Temperature Control Valve, 3/4 in Nominal, FNPT End Style, 150 psi Pressure, 90 to 160 deg F, 0.5 to 23 gpm Flow Rate, Copper Silicon Alloy Body, Domestic
Part #3772
MFG #0559104
- Item Features
- Attributes
- Documents
Item Features
- Thermal actuation technology for precise temperature control.
- Lead free cast copper silicon alloy body construction.
- Solid wax hydraulic principle thermostat assures dependable mixing of hot and cold water.
- Thermostat controls both hot and cold water.
- Integral filter washers and check valves.
- Adjustment cap with locking feature.
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight.
- 30 psi static minimum supply pressure.
- 120 to 200 deg F hot inlet and 40 to 85 deg F cold inlet temperature.
- 5 deg F above set point hot water inlet to outlet differential temperature.
- 90 to 160 deg F temperature out.
- Accurate within +/- 3 deg F temperature out.
- EPDM O-ring/Stainless steel spring.
Attributes
SeriesLF1170
Nominal Size3/4 in
End StyleFNPT
Pressure Rating150 PSI
Temperature Rating90 to 160 deg F
Flow Rate0.5 to 23 gpm
Body MaterialCopper Silicon Alloy
Softgoods MaterialEPDM
FinishRough Bronze
Dimensions4-7/8 in W x 5-7/16 in H
Domestic/ImportDomestic
