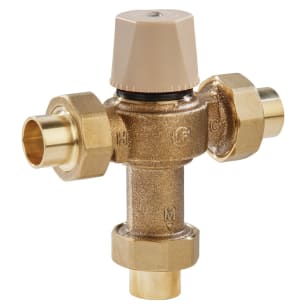

WATTS 0559118 LFMMV Mixing Valve, 3/4 in Nominal, Solder Union End Style, 150 psi Pressure, 0.5 to 20 gpm Flow, Copper Silicon Alloy Body, Domestic

Part #3777

MFG #0559118


WATTS 0559118 LFMMV Mixing Valve, 3/4 in Nominal, Solder Union End Style, 150 psi Pressure, 0.5 to 20 gpm Flow, Copper Silicon Alloy Body, Domestic

Part #3777

MFG #0559118

Sign In to See Your Price

WATTS 0559118 LFMMV Mixing Valve, 3/4 in Nominal, Solder Union End Style, 150 psi Pressure, 0.5 to 20 gpm Flow, Copper Silicon Alloy Body, Domestic

Part #3777

MFG #0559118

Item Features
  • Thermal actuation technology for precise temperature control.
  • Locking mechanism secures temperature setting.
  • Lead free cast copper silicon alloy body construction.
  • Solid wax hydraulic principle thermostat assures dependable mixing of hot and cold water.
  • Solder, threaded, PEX or CPVC, quick connect end connection or with press.
  • Adjustment cap with locking feature.
  • Integral filter washers and check valves.
  • 0.5 gpm at 0.8 psi minimum, 20 gpm at 125 psi maximum.
  • 30 psi (207 kPa) minimum supply pressure static.
  • 120 to 180 deg F (49 to 82 deg C) hot/ 39 to 85 deg F (4 to 29 deg C) cold inlet temperature.
  • Hot water inlet to outlet differential temperature, 5 deg F (3 deg C) above set point.
  • Field range, 80 to 120 deg F (27 to 49 deg C) adjustable.
  • Maximum pressure differential between hot and cold water supplies, 25%.
  • The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight.
