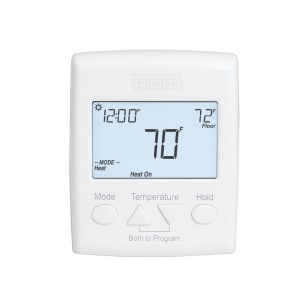

Tekmar 565 HVAC Thermosta

Part #154332

MFG #565


Tekmar 565 HVAC Thermosta

Part #154332

MFG #565

Sign In to See Your Price

Tekmar 565 HVAC Thermosta

Part #154332

MFG #565

Item Features
  • Ventilation.
  • Relative humidity.
  • Slim profile with multiple display color options.
  • Outdoor temperature.
  • Programmable schedule with early start, energy monitoring.
  • Water leak notification when connected to Watts FloodSafe Water Detector Shutoff.
  • Relative humidity control.
  • Away energy saving mode.
  • Display: Indoor use only, -4 to 122 degrees F (-20 to 50 degrees C), RH less than or equal to 90 percent non-condensing, HVAC Interface Module: -40 to 122 degrees F (-40 to 50 degrees C), RH less than or equal to 90 percent non-condensing AmbientConditions.
  • Display: 4-1/2" H x 2-3/4" W x 9/16" D (114 x 70 x 14 mm), HVAC Interface Module: 7-7/16" H x 4-7/16" W x 1-1/4" D (112 x 56 x 31 mm) Dimensions.
  • 3.5" color touchscreen Display.
  • White Color Display and Blue Color HVAC Interface Module.
  • NEMA 1 Enclosure NEMA Rating.
  • 0 to 90 percent plus / minus 4 percent RH Humidity Sensor.
  • 15 to 30 V (ac/dc), 2 VA, Class 2 Power Supply.
  • 30 V (ac), 2 A, Class 2 circuits Relay.
  • 3.3 V (dc) humidity sensor power, 3.0 mA maximum RH-Output.
  • NTC thermistor, 10 k ohms at 77 degrees F (25 degrees C plus / minus 0.2 degrees C) Beta = 3892 Temperature Sensor.
  • Programmable Thermostat Zoning-Thermostat Type.
