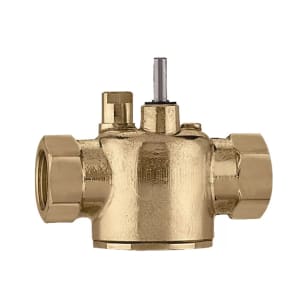

Caleffi Z200043 Z Series 2-Way Straight Valve Body, 1/2 in Nominal, Inverted Flare End Style, 300 psi Pressure, 3.5 Cv

Part #172758

MFG #Z200043


Caleffi Z200043 Z Series 2-Way Straight Valve Body, 1/2 in Nominal, Inverted Flare End Style, 300 psi Pressure, 3.5 Cv

Part #172758

MFG #Z200043

Sign In to See Your Price

Caleffi Z200043 Z Series 2-Way Straight Valve Body, 1/2 in Nominal, Inverted Flare End Style, 300 psi Pressure, 3.5 Cv

Part #172758

MFG #Z200043

Item Features
  • Z2 2-way straight valve body for motorized zone valves.
  • Two-way on/off two position valve.
  • Straight through flow pattern.
  • (2) EPDM O-ring and paddle.
  • Zone valve provides 100% bubble-tight seat close-off leakage.
  • The high temperature and high close-off performance characteristics of these zone valves, combined with the compact size, makes them suitable to fit inside baseboards or directly in fan coil units.
  • Water and glycol, low pressure steam suitable fluids.
  • 50% maximum percent of glyco.
  • 300 lb/sq-in Static, 15 lb/sq-in Steam, 30 lb/sq-in Close-Off Pressure.
