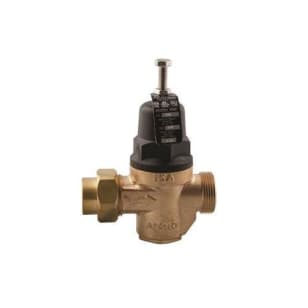

Apollo 36C10501 36C Compact Direct Acting Pressure Reducing Valve, 1 in Nominal, Single Union NPT End Style, 25 to 75 psi Pressure, Bronze Body, Domestic
Part #4042
MFG #36C10501
Apollo 36C10501 36C Compact Direct Acting Pressure Reducing Valve, 1 in Nominal, Single Union NPT End Style, 25 to 75 psi Pressure, Bronze Body, Domestic
Part #4042
MFG #36C10501
Sign In to See Your Price
Apollo 36C10501 36C Compact Direct Acting Pressure Reducing Valve, 1 in Nominal, Single Union NPT End Style, 25 to 75 psi Pressure, Bronze Body, Domestic
Part #4042
MFG #36C10501
- Item Features
- Attributes
- Documents
Item Features
- Balanced piston design.
- Sealed spring cage vault.
- Stainless steel adjusting screw and nut.
- Built-in thermal expansion by pass.
- Easy access to seat disc and stainless steel strainer.
- 50 psi factory preset pressure.
- Stainless steel screen/adjusting screw/nut.
- Noryl cap.
- NSF grade EPDM diaphragm/seat disc/o-rings.
- Compact non-potable.
Attributes
TypeCompact Direct Acting
Series36C
Nominal Size1 in
End StyleSingle Union NPT
Pressure Range25 to 75 psi
Temperature Rating33 to 180 deg F
MediaWater
Inlet to Outlet Length5-1/2 in
Body MaterialBronze
Trim MaterialBrass
Softgoods MaterialEPDM O-Ring, Seat Disc
Dimensions6 in H
Domestic/ImportDomestic
Documents
