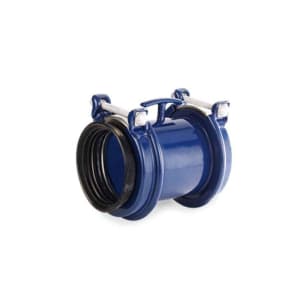

HYMAX 860-54-0108-16 Wide-Range Coupling, 4 in Nominal, Grade C Steel End Rings/Grade A Steel Center Ring/Stainless Steel Bridge, Spherical Spacers, Nut and Bolts

Part #138106

MFG #860-54-0108-16


HYMAX 860-54-0108-16 Wide-Range Coupling, 4 in Nominal, Grade C Steel End Rings/Grade A Steel Center Ring/Stainless Steel Bridge, Spherical Spacers, Nut and Bolts

Part #138106

MFG #860-54-0108-16

Sign In to See Your Price

HYMAX 860-54-0108-16 Wide-Range Coupling, 4 in Nominal, Grade C Steel End Rings/Grade A Steel Center Ring/Stainless Steel Bridge, Spherical Spacers, Nut and Bolts

Part #138106

MFG #860-54-0108-16

Item Features
  • Advanced Wide-Range Coupling with a Patented Flip Gasket.
  • Eliminates Gasket Removal Mistakes and Maximizes Installer Work Efficiency.
  • Only 2-4 Top Facing Bolts, For Faster and Safer Installation.
  • Ready-to-Use Design to Eliminate Extensive Preparatory Under-Pipe Digging.
  • Allows 4° Dynamic Deflection on Each End, Reducing Future Pipe Damage.
  • Patented Hydraulically-Assisted Gasket with 2-Stage Sealing.
  • Suitable for All Types of Pipes - Ductile Iron, Cast Iron, Steel, Copper, PE, PVC, AC, GRP.
  • One Product Can Connect Pipes of Two Different Materials.
  • 4.25-5.63 Overall Range (inch).
  • 4.25-5.00 Range in closed gasket position (inch).
  • 4.92-5.63 Range in open gasket position (inch).
  • 2 -M14 Bolt Qty. and Size (mm).
  • 75 Torque (Ft-Lbs).
  • 15 Approx. Weight (Lbs).
