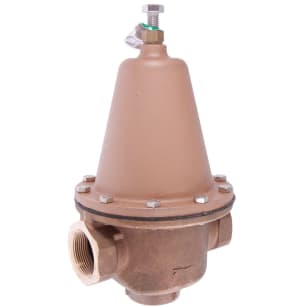

WATTS 0298533 LF223 Pressure Reducing Valve, 1 in Nominal, FNPT End Style, 25 to 75 psi Pressure, Brass Body, Domestic

Part #80457

MFG #0298533


WATTS 0298533 LF223 Pressure Reducing Valve, 1 in Nominal, FNPT End Style, 25 to 75 psi Pressure, Brass Body, Domestic

Part #80457

MFG #0298533

Sign In to See Your Price

WATTS 0298533 LF223 Pressure Reducing Valve, 1 in Nominal, FNPT End Style, 25 to 75 psi Pressure, Brass Body, Domestic

Part #80457

MFG #0298533

Item Features
  • NPT threaded female inlet by NPT threaded female outlet connections.
  • Disc holder removable for replacement of disc without dismantling the valve, no special tools are required.
  • Sensitive spring and large diaphragm for accurate pressure control.
  • High temperature resisting diaphragm for hot or cold water.
  • Enlarged diaphragm, spring cage and seat orifice for super capacity performance.
  • Lead free brass body construction (except 2-1/2 in (65 mm) which is iron).
  • Serviceable in line.
  • Optional bypass feature controls thermal expansion pressure.
  • Sealed spring cage on all models for accessible outdoor or pit installations.
  • 25 to 75 psi adjustable reduced pressure range.
  • 50 psi (345 kPa) standard pressure setting.
  • The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight.
  • The bypass feature will not prevent the pressure relief valve from opening on the hot water supply system with pressure above 150 psi.
